Research
and Compliance Mode note:
In RUO mode, all users can perform these tasks.
In Compliance mode, only ModFitAdmins
and ModFitEditors have permission
to perform them.
Purpose: Select the information you want to save in a database. See Databasing with ModFit LT for more on databases.

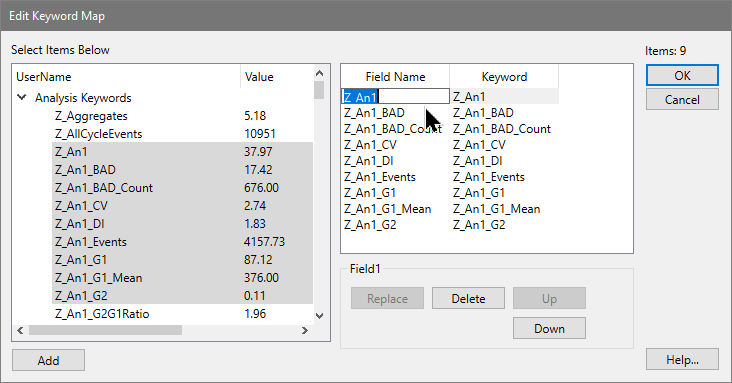

The Edit Keyword Map dialog can be displayed by choosing Edit Databases from the Edit tab, selecting the database you want to edit, then clicking the Edit button. If the Database Viewer is displayed, clicking a button on the viewer's toolbar can also access this dialog.
Overview
Each database in ModFit LT has its own structure, made up of a set of keywords to database and a matching set of fields in a database. The Edit Keyword Map dialog determines how the keywords are "mapped" to fields in the database.
Results Tree
This tree expands to display all of the available groups of keywords and the keywords in each group. A branch of the tree can be expanded by double clicking the mouse on it. Select a branch of the tree by clicking once on it.
This tree is used to select the keywords you want to store in the database. It allows multiple selection. See the discussion in Databasing with ModFit LT for more on proper selection of information to database.
Map Definition
This list displays the field names and the keywords they relate to. The first column showing the field name can be edited; other columns are for display only. To edit a field name, click once on the field to select it, then click again after a moment to enter edit mode.
Add
Click this button to add the keywords selected in the Results Tree to the database definition shown in the Map Definition list. Fields are named automatically to show the source of the information. You can also double-click on a keyword to add it to the definition.
Replace
The option is available when you select an item in the tree and an item in the Map Definition list. It allows you to map a new keyword to an existing field in the database.
Delete
Click this button to delete the fields selected in the Map Definition list from the database.
Up/Down
These buttons allow you to change the order of fields in the Map Definition list. Select one or more fields in the list, and then use the Up and Down buttons to move the item(s).
OK
Save changes to the database. If records already exist in the database, the structure of the records will be revised to match the new structure you have defined.
Cancel
Close the dialog and discard any changes you have made.
Help
Show this help topic.
