Research
and Compliance Mode note:
In RUO mode, all users can perform these tasks.
In Compliance mode, only ModFitAdmins
and ModFitEditors have permission
to perform them.

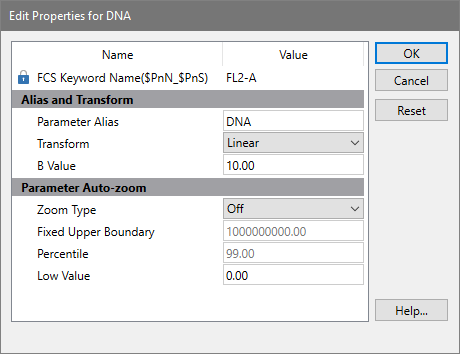

FCS Keyword Name
This is the name from the FCS file for the parameter.
Alias
This field contains the name to display when this parameter is used in ModFit. It can be edited, and it appears on the axis of the graphs that display the parameter.
Transform
Choose either a Log or Linear transform to use for this parameter.
Parameter auto-zoom
Zoom Type
Choose how this parameter should be zoomed when ModFit reads it.
Off: no zooming is performed.
To highest used channel: zooms to the highest channel that has events in it.
To fixed upper boundary: zooms to the channel defined in the Fixed Upper Boundary edit box below.
To Percentile: zooms to a percentile location in the data.
Fixed Upper Boundary
This field is used when To fixed upper boundary is selected for Zoom Type. It defines the channel location to zoom to.
Percentile
This field is used when To Percentile is selected for Zoom Type. It defines the percentile of data to include in the zoomed area.
OK
Click this button to accept the changes and close the dialog box.
Cancel
Click this button to discard any changes and close the dialog box.
