This panel contains properties that apply to all cell types in the current model. It is located on the left side of a cell type tab.
Names and Paths
Document Name
The name of the GemStone document currently opened.
Template Model
The name of the template model that was used.
Version stamp
The version of the template model that was used.
Stats
Total Events In File
The number of events in the FCS file.
Total Analyzed Events
The number of events in the FCS file analyzed by the model.
Total Cell Type Events
The number of events in the Cell Type.
Total Unclassified
The number of unclassified events.
Percent Unclassified
The percentage of events that were not classified by the model.
Author
Model Author
Optional, the name of the creator of the model.
Lock Model
When enabled, the program will prompt for a password from the author, and then lock the model from user edits. To edit the model, the Lock Model option must be unchecked and the correct password entered.
Auto Analysis
Auto Analysis Mode
Choose one of the options.
Sequential mode enables the cell types as they are auto-analyzed, and each cell type remains enabled as other cell types are analyzed.
Independent mode enables one cell type, perform auto-analysis on that cell type, then disables that cell type before moving to the next.
Model Performance

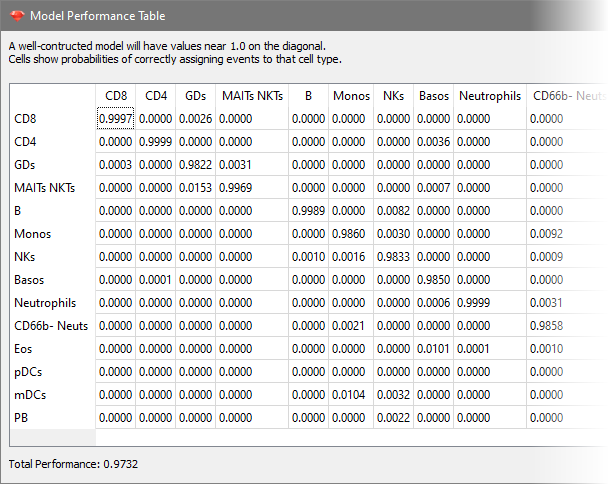

Model Performance Table
Typically, this is set not to show a performance table, also known as a contingency table.
Select Show Table after an analysis to display the table for the current analysis.
When the model is working well, the elements on the diagonal will be close to 1.0. When values are less than 1.0 on the diagonal, the other values in the same column will indicate other cell types that are "overlapping" in some way with the primary cell type for that row. For example in the table above, the element on the GDs row-column shows a value of 0.9822. This indicates that the events in the GDs cell type have a 98% probability of being GDs. Some of the GDs are being captured by the MAITs_NK cell type (0.0031) and CD8 cell type (0.0003).
