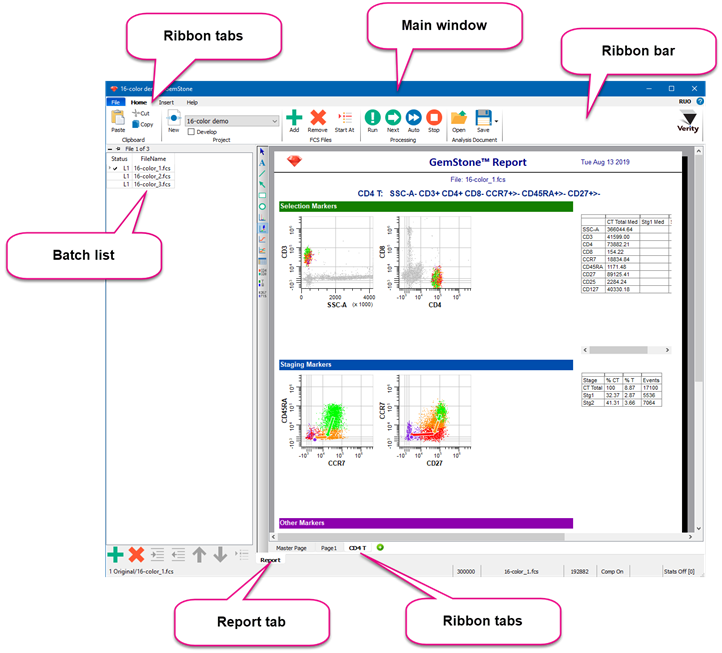

When GemStone starts-up, the main window is comprised of a ribbon bar at the top, a batch list on the left, and a report tab that contains tabs for each page in a report.
The ribbon bar contains most of the commands that you will use. The commands are divided into a series of ribbon tabs: File tab, Home tab, Insert tab, Options tab, Develop tab, and the Help tab. Some tabs are only visible when the Develop option is enabled.

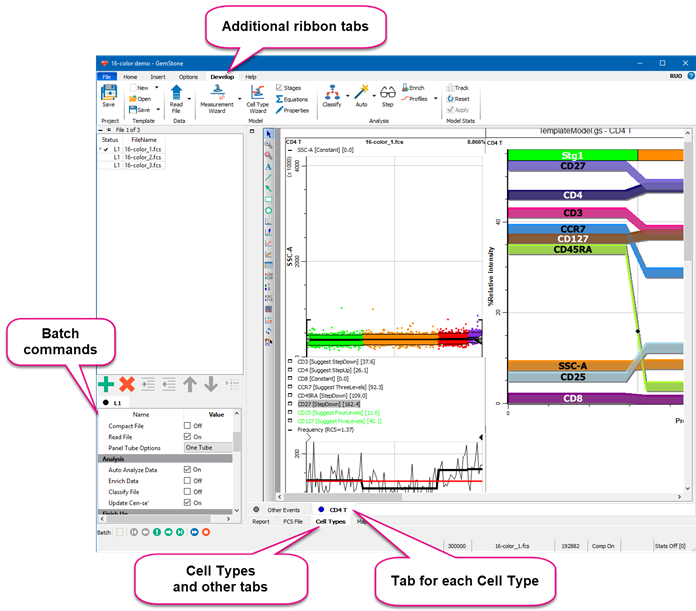

In Develop mode, additional elements are displayed:
Additional ribbon tabs are displayed in Develop mode. Batch commands determine what actions are performed on files in the batch. Additional tabs appear at the bottom of the window to select FCS File, Cell Types, and Maps view. With the Cell types view selected, a tab is shown for each cell type defined in the model template.
