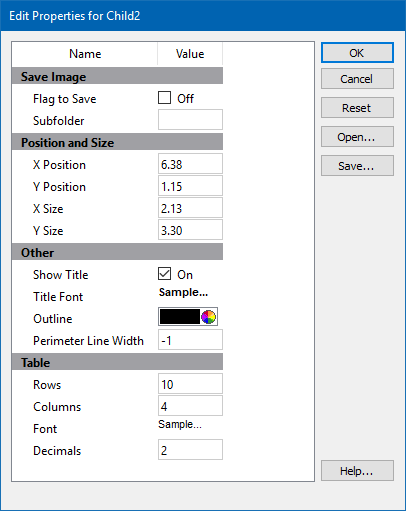

This command edits properties of the object's frame.
Save Image
Flag to Save
Check to flag this object for saving its image when the file is analyzed.
Subfolder
Type in the subfolder name to store its image. Must be created in the canvas image folder.
Position and Size
X Position
Enter the x position in inches.
Y Position
Enter the y position in inches.
X Size
Enter the x size in inches.
Y Size
Enter the y size in inches.
Other
Show Title
Show the title of the object.
Title Font
Font of the title
Outline Color
Color of the object's perimeter
Outline Width
Line with of the object's perimeter (-1 to 20). A value of -1 turns off the border.
Rows and Columns
Rows
Enter the number of rows for this table.
Columns
Enter the number of columns for this table.
Font
Font for the table.
Decimals
Specify the number of decimal places for numbers in the table.
Actions
OK
Click this button to accept the changes and close the dialog box.
Cancel
Click this button to discard any changes and close the dialog box.
Reset
Click this button to reset the object's properties to default values.
